Product Description

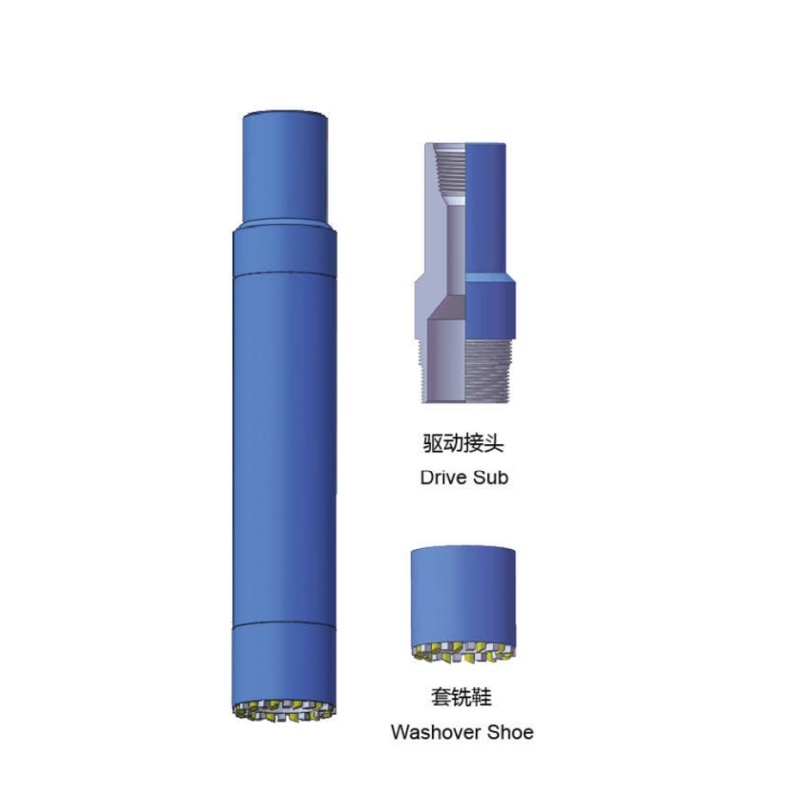

Washover pipe is a special tool used to mill stuck drill tool in casing milling process, which is used to remove stuck drill accident. The milling pipe is made of high strength and high impact toughness material, and the connection form is double-stage short trapezoidal thread connection, which is not only high strength, but also easy to buckle, and the metal shoulder sealing is reliable. Accessories for use with: drive joint, wire lift, milling tube safety joint, milling shoe.
Product Parameter
Model | OD | ID | WT | Minimum hole size | Maximum hole size | Maximum tensile load( KN) | Thread torque | Sealing load | |
(mm) | (mm) | (mm) | (mm) | (mm)_ | (N.m) | (MPa) | |||
TXG95.3 | 95.3 | 82.6 | 6.35 | 105 | 79.4 | 180 | 4070 | 20 | |
TXG101.6 | 101.6 | 84.6 | 8.5 | 114.3 | 82.5 | 355 | 6750 | 20 | |
TXG114.3 | 114.3 | 99.6 | 7.36 | 120.7 | 95.3 | 345 | 6780 | 20 | |
TXG114.3 | 114.3 | 97.2 | 8.56 | 120.7 | 93.7 | 390 | 9490 | 20 | |
TXG127 | 127 | 108.6 | 9.19 | 146.1 | 104.8 | 440 | 12202 | 20 | |
TXG139.7 | 139.7 | 124.3 | 7.72 | 152.4 | 121 | 460 | 12200 | 20 | |
TXG139.7 | 139.7 | 121.4 | 9.17 | 152.4 | 117.5 | 500 | 14914 | 20 | |
TXG139.7 | 139.7 | 118.6 | 10.55 | 152.4 | 114.3 | 550 | 17630 | 20 | |
TXG146 | 146 | 130.2 | 7.92 | 162 | 127 | 500 | 14914 | 20 | |
TXG146 | 146 | 128.1 | 9 | 162 | 121 | 560 | 16269 | 20 | |
TXG152.4 | 152.4 | 136 | 8.25 | 178 | 133.3 | 525 | 16270 | 20 | |
TXG168.3 | 168.3 | 150.4 | 8.94 | 187.3 | 146 | 600 | 21693 | 15 | |
TXG177.8 | 177.8 | 159.4 | 9.19 | 200 | 152.4 | 640 | 24404 | 15 | |
TXG193.7 | 193.7 | 174.6 | 9.53 | 212.7 | 171.5 | 700 | 31183 | 15 | |
TXG193.7 | 193.7 | 171.8 | 10.92 | 212.7 | 168.3 | 810 | 36607 | 15 | |
TXG193.7 | 193.7 | 168.3 | 12.7 | 212.7 | 165 | 1060 | 43386 | 15 | |
TXG203.2 | 203.2 | 184.2 | 9.53 | 216 | 181 | 820 | 32539 | 15 | |
TXG206.4 | 206.4 | 187.6 | 9.4 | 216 | 184.2 | 830 | 32539 | 15 | |
TXG206.4 | 206.4 | 185.1 | 10.67 | 216 | 181 | 905 | 40680 | 15 | |
TXG206.4 | 206.4 | 182.5 | 11.94 | 216 | 179.4 | 1025 | 47460 | 15 | |
TXG219 | 219 | 196.2 | 11.43 | 244.5 | 195.3 | 1100 | 47453 | 15 | |
TXG219 | 219 | 193.7 | 12.7 | 244.5 | 192 | 1220 | 54232 | 15 | |
TXG228.6 | 228.6 | 207 | 10.8 | 250.8 | 203 | 1260 | 47453 | 15 | |
TXG244.5 | 244.5 | 220.5 | 11.99 | 266.7 | 215.9 | 1460 | 67791 | 15 | |
TXG244.5 | 244.5 | 216.8 | 1384 | 266.7 | 206.4 | 1560 | 81349 | 15 | |
TXG273 | 273 | 250.2 | 11.43 | 298.5 | 244.5 | 1620 | 81349 | 15 | |
TXG273 | 273 | 247.9 | 12.57 | 298.5 | 241.3 | 1640 | 88128 | 15 | |
TXG298.5 | 298.5 | 273.6 | 12.42 | 323.9 | 266.7 | 1800 | 108465 | 10 | |
TXG339.7 | 339.7 | 313.6 | 13.06 | 365.1 | 304.8 | 2020 | 149140 | 10 | |
TXG406.4 | 406.4 | 373.1 | 16.66 | 444.5 | 356 | 2500 | 254894 | 7 | |
