Product Description

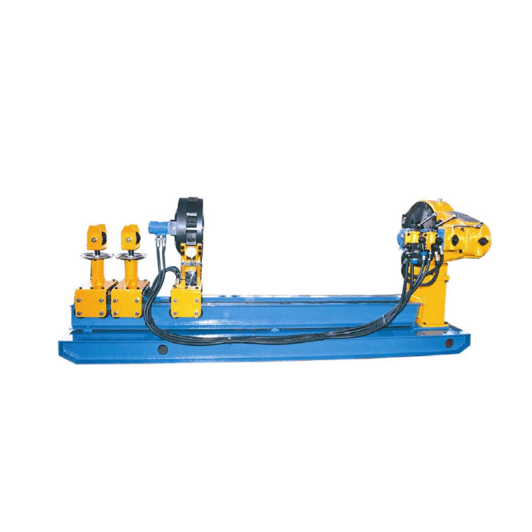

Model YNJ-200/15 Hydraulic Make- up/Break - out Units is a kind of machine for rnaking up and breaking out thread joint, which is suitable for the

assembly and disassembly of downhole pump, downhole tools, tubing, casing and other thread joint tools. This Product has the following features:

• Unit' head is driven by low speed large torque hydraulic motor. Control valve set connects with the hydraulic motor directly. The structure is compact and

  concise.

• Hydraulic backup tong and units' head are parallel hydraulic circuit. Operating control valve on units' head, backup tong clips or loosens simultaneously

• Units' head and backup tong are four planetary claw of bi-direction clipping mechanism. When clipping tube of various OD in application range,

  just change the direction of knob.

• Automatic Torque Control system can be provided according to the demands of customers. This system can set the best torque value freely,

  control the making-up torque automatically, record each maximum torque value, which can be checked by technical and checkout departments.

• The backup tong is equipped with hydraulic walking mechanism Which can move with tube.

• Four speeds. Torque has wide application range.

Product Parameter

2.1 Range Φ60-195 mm (2 7/8"－7 5/8")

2.2 Low gear max. torque 15 kN.m (11060 ft.lbs)

2.3 Second low gear max. torque 8.5 kN.m (6270 ft.lbs)

2.4 Second high gear max. torque 4.7 kN.m (3450 ft.lbs)

2.5 High gear max. torque 2.6 kN.m (1920 ft.lbs)

2.6 High gear max. rotation speed 64 RPM

2.7 Second high gear max. rotation speed 36 RPM

2.8 Second low gear max. rotation speed 19 RPM

2.9 Low gear max. rotation speed 11 RPM

2.10 Max. work pressure 14 MPa (2030 psi)

2.11 Max. oil supply 100 LPM (26 GPM)

2.12 Weight 1220 kg (2690 lbs)

2.13 Overall dimensions 3000×1300×1290 mm
